Black and White Paper Guide


KODAK POLYMAX II RC Paper

DESCRIPTION KODAK POLYMAX II RC Paper is a fast, selective contrast, black-and-white enlarging paper with a resin coated base. It is an improved version of KODAK POLYMAX RC Paper, which it replaces.
This new medium-weight paper features a wide contrast range and a neutral-black image tone. It is useful for a variety of applications such as advertising, aerial, commercial, education, finishing, industrial, law enforcement, mapping, medical, military, photo hobbyist, and photojournalism.
POLYMAX II RC Paper is intended for tray (dish) and roller-transport, rack-and-tank, or continuous machine processors using conventional developers. This paper may also be processed in activation processors such as the KODAK ROYALPRINT Processor, Model 417.
BASE AND SURFACE CHARACTERISTICS

Symbol Texture Surface Base
Tint
Base
Weight
F* Smooth Glossy White MW
N Smooth Semi-Matt White MW
E Fine-Grain Lustre White MW
    * Do not ferrotype. This paper dries with a natural gloss to the emulsion
surface without ferrotyping.



FEATURES BENEFITS
  • Very rich blacks
  • Intense saturated blacks, especially when dried using infrared dryers
  • Excellent image quality
  • Extremely sharp prints
  • Excellent highlight tone reproduction
  • Readily separates details in highlights
  • Excellent separation of dark tones
  • Readily separates details in shadows
  • Excellent process latitude
  • Accommodates an extremely wide range of times and temperatures with consistently good results
  • Minimal product variability
  • Outstanding manufacturing uniformity from edge to edge and box to box
  • Long shelf life
  • Excellent D-min
  • Clean, brilliant, neutral whites
  • Optically brightened support and emulsion
  • Neutral image tone
  • A neutral image-neither warm nor cold
  • Rich color with KODAK Sepia Toner
  • Provides a traditional sepia tone
  • Extremely good post- processing life
  • Long print life
  • Excellent print stability
  • Highest-quality resin- coated (base) support

  •
  • Nominal "white light" grade number of 2.5
  • Designed to print most negatives without filtration at maximum speed
  • Improves printer productivity
  • Wide contrast range
  • Accommodates a wide range of negative contrasts
  • Processable in the KODAK ROYALPRINT Processor, Model 417
  • Rapid processing
  • Specially stabilized support
  • Neutralizes yellowing effects of incorporated developer migration; paper stays white
  • Resin-coated, water- resistant base
  • Rapid processing without edge penetration, fast drying, minimum curl


SAFELIGHT RECOMMENDATIONS
Use a KODAK OC Safelight Filter (light amber) in a suitable safelight lamp with a bulb of 15 watts or less at least 4 feet ( 1.2 metres) from the paper. Minimize safelight exposure to avoid unwanted quality changes. Be especially careful if you use other types of safelights.
Note: Do not use a KODAK OA Safelight Filter (greenish yellow). See KODAK Publication No. K-4, How Safe Is Your Safelight?, for information on safelight testing.

STORAGE AND HANDLING
Store paper in a cool, dry place (preferably at or below 70F [21 C] and at a relative humidity of 30 to 50 percent). High temperature or high humidity may produce undesirable changes. Always rewrap unused paper in its original packaging (the outer box as well as the bag) to protect it from light and moisture. Avoid or shield the paper from exposure to radioactivity or x-rays.

EXPOSURE
Light Sources
Expose this paper with tungsten or tungsten-halogen enlarger lamps, and automatic printers. You can use other light sources, such as cool-white fluorescent lamps or mercury-vapor lamps, or cathode-ray tubes, but you may need to use correction filters in addition to the filters for contrast control. For best results, make test prints to determine the optimum filtration for each light source.
If you use a subtractive color-head enlarger with dichroic filters, magenta and yellow filtration may not be sufficient to achieve the highest and lowest contrast the paper can deliver. In this circumstance, if the white light mode is available, use POLYMAX 5+ and -I Filters.
Suggested starting-point filtration for other light sources is listed below. Make a test print to determine the optimum filtration for each light source.

Enlarging Lamp KODAK Color
Compensating Filter or
KODAK Color Printing Filter
Cool white fluorescent CP4OY or CC4OY
Daylight fluorescent CP7OY or CC7OY
Note: Use optical-grade gelatin KODAK Color Compensating (CC) Filters between the negative and the paper. Use acetate KODAK Color Printing (OP) Filters between the light source and the negative.



Filters
To achieve the widest possible contrast range with this paper, use KODAK POLYMAX Filters. These filters provide twelve contrast increments with improved contrast spacing with this paper. Use the low-number filters
(-1 to 31h) for contrasty negatives or to lower the contrast overall. No exposure adjustment is required when changing from one filter to another within this range. With flat negatives or to raise the contrast, use the higher-number filters (4 to 5+). Using filters in this range will require twice the exposure.
You can use the POLYMAX Filter Set above or below the enlarger lens. The POLYMAX Filter Kit is similar to the set except it's mounted in plastic filter mounts. You can use these filters below the enlarger lens. They are supplied in a hinged plastic box with a filter holder and adapters to fasten the holder to the red filter post or to the lens.
If you already have the 11-filter KODAK POLYCONTRAST II Filter Kits or Sets, you can upgrade your set by purchasing two new filters (POLYMAX Filters -1 and 5+). Add the POLYMAX Filter-1 to your current set of POLYCONTRAST II Filters, and substitute the POLYMAX 5+ Filter for the old POLYCONTRAST II Filter 5. You can also use other manufacturers' filters with this paper, but results may not be the same. For critical applications, make tests to determine the paper contrast.
The filter kit, filter sets, and filter upgrade sets (to upgrade the former POLYCONTRAST II Filters to the newer POLYMAX Filters) are available from dealers who supply Kodak professional products. See the following tables for the correct catalog numbers. Contact Kodak if you need more information.



Filter Kit and Sets
KODAK POLYMAX Filters (12 filters)
Filter Kit
CAT 365 6212
Filter Set
(90 x 90 mm)
CAT 365 7699
Filter Sets
(150 x 150 mm) CAT 366 1949; 300 x 350 mm)
CAT 365 7798*


Upgrade Sets
KODAK POLYMAX Filters-1 and 5+ (2 filters)
to upgrade the former 11-filter
KODAK POLYCONTRAST II
Kits and Setst
Upgrade Set
CAT 365 4779
(to upgrade
former Filter Kit)
Upgrade Set
CAT 364 9027
(to upgrade
former Filter Set
[90 x 90 mm])
Upgrade Set
CAT 366 0677
(to upgrade
former Filter Set
(150 x 150 mm)
*Special order
tMade before May 1992

ISO PAPER SPEED AND RANGE
Note: The numbers for Paper Range indicate the relative ISO ranges of different contrasts produced with KODAK POLYMAX Filters. The ranges were calculated from the log exposure ranges of the paper. Use them as a guide for selecting the appropriate paper contrast for the density range of a specific negative. When the ISO range of the paper approximately equals 100 times the density range of the negative, the contrast of the print will usually be satisfactory. (For convenience, the log exposure ranges have been multiplied by 100 so that the ISO ranges are expressed as whole numbers.) The contrast you choose will also depend on the nature of the subject.

FILTRATION VALUES FOR COMMON BLACK-AND-WHITE AND COLOR ENLARGERS

The contrast of selective grade papers is adjustable through changes in the color of the light exposing the paper. Because enlarger lamps and filters can vary from one manufacturer or model to the next, the contrast performance of
POLYMAX II RC Paper can also vary depending upon the equipment used.
ANSI standards define a contrast method called "Log Exposure Range" (LER). Kodak relates LER to paper grade numbers to classify seven degrees of contrast. You can use the information in the following chart as a guide for selecting the filtration required to achieve a desired paper grade when printing with some commonly available color and black and-white enlargers.

 F Surface
KODAK POLYMAX Filter N
Filter
-1 0 1/2 1 11/2 2 21/2 3 31/2 4 41/2 5+
KODAK POLYMAX
RT Developer and
Replenisher
Paper Speed P500 P320 P320 P320 P320 P320 P320 P320 P320 P320 P125 P125 P125
paper Range R100 R140 R140 R130 R120 R120 R110 R110 R90 R80 R70 R60 R50
KODAK DEKTOL
Developer
Paper Speed P500 P250 P250 P250 P250 P250 P250 P250 P250 P250 P125 P125 P125
PaperRange R100 R140 R140 R130 R130 R120 R120 R110 R100 R80 R70 R50 R40
KODAK
ROYALPRINT
Processor,
Model4l7
PaperSpeed P400 P200 P200 P200 P200 P200 P200 P200 P200 P200 P100 P100 P100
paper Range R110 R160 R150 R140 R130 R130 R120 R110 R100 R90 R70 R60 R50
N Surface

KODAK POLYMAX Filter No
Filter
-1 0 1/2 1 11/2 2 21/2 3 31/2 4 41/2 5+
KODAK POLYMAX
RT Developer and
Replenisher
Paper Speed P500 P320 P320 P320 P320 P320 P320 P320 P320 P320 P125 P125 P125
paperRange R90 R120 R120 R120 R110 R110 R100 R100 R90 R80 R60 R50 R40
KODAK DEKTOL
Developer
Paper Speed P500 P250 P250 P250 P250 P250 P250 P250 P250 P250 P125 P125 P125
PaperRange R90 R130 R130 R120 R110 R110 R110 R100 R90 R80 R60 R40 R40
KODAK
ROYALPRINT
Processor,
Model4l7
PaperSpeed P400 P200 P200 P200 P200 P200 P200 P200 P200 P200 P100 P100 P100
paperRange R100 R140 R140 R130 R130 R120 R120 R110 R100 R80 R70 R60 R50

E Surface
KODAK POLYMAX Filter No
Filter
-1 0 1/2 1 11/2 2 21/2 3 31/2 4 41/2 5+
KODAK POLYMAX
RT Developer and
Replenisher
Paper Speed P500 P320 P320 P320 P320 P320 P320 P320 P320 P320 P125 P125 P125
paper Range R110 R140 R140 R130 R120 R120 R110 R110 R100 R80 R70 R60 R50
KODAK DEKTOL
Developer
Paper Speed P500 P250 P250 P250 P250 P250 P250 P250 P250 P250 P125 P125 P125
Paper Range R110 R140 R140 R130 R120 R120 R110 R110 R110 R80 R70 R60 R50
KODAK
ROYALPRINT
Processor,
Model4l7
PaperSpeed P400 P200 P200 P200 P200 P200 P200 P200 P200 P200 P100 P100 P100
paper Range R100 R150 R140 R140 R130 R130 R120 R120 R100 R90 R70 R60 R50
Note: KODAK POLYMAX RT Developer and Replenisher for 15 seconds at 100F (37.8C)
KODAK DEKTOL Developer (1 :2) for 60 seconds at 68F (20C)

The age of the lamp and the condition of the enlarger and filters can affect the contrast you will actually achieve. Use the data in the chart as a starting point only. If you cannot obtain as high a contrast as indicated in the chart, examine the light filter mixing chamber. This chamber often yellows with age, imparting a permanent low-contrast bias to the enlarger. Replace the chamber's lining as appropriate with fresh white material. If you still cannot obtain as high a contrast as indicated, you may have to replace the magenta filter. Compared to yellow filters, magenta filters are more susceptible to fading caused by heat.
The data for the chart was generated by placing a step tablet in contact with the paper on the easel. Slightly different results are obtained using a step tablet at the negative gate.

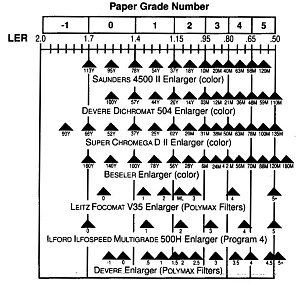

KODAK POLYMAX II RC Paper
Grade Numbers for Various Enlargers
KODAK POLYMAX IR Processor, 15 sec. in
KODAK POLYMAX RT Developer and Replenisher, 100F (38C)



Examples: With a DEVERE DICHROMAT 504 Enlarger (color head), you can obtain paper grade 1 with 44Y dichroic filtration. To obtain paper grade 4, dial in 36M filtration.
With the same enlarger, if you dial out all filtration to give white light, using a POLYMAX 4 Filter will yield paper grade 4.5.

PROCESSING
Machine Processing

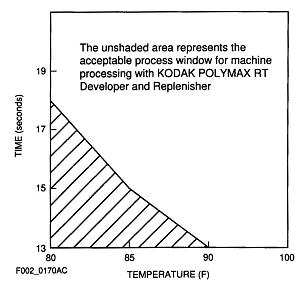

For rapid processing of this paper, you can use the KODAK POLYMAX IR Paper Processor, KODAK DEKTOMATIC 65 Paper Processor, and the KODAK ROYALPRINT Processor, Model 417, as well as other roller-transport and continuous processors that use conventional developers.
For mechanized processors using conventional developers, we recommend:


Processor Developer Fixer
Roller-Transport,
Rack-and-Tank,
Continuous
KODAK
POLYMAX RT
Developer and
Replenisher
KODAK
POLYMAX RT
Fixer and
Replenisher
OR
KODAK Rapid
Fixer, Solution A
For activation processing, we recommend:

Processor Chemicals
KODAK ROYALPRINT
Processor, Model 417
KODAK ROYALPRINT
Activator,
KODAK ROYALPRINT
Stop Bath, and
KODAK ROYALPRINT
Fixer and Replenisher


Tray Processing
Tray process with continuous agitation at 68F (20C), using the appropriate dilution and development time recommended in the table.

KODAK
Chemical
Dilution
(chemical:
water)
Time
(min:sec)
Capacity
(8 x 10-inch
Prints
per gal/L)
Developer--68 F {20 C)
POLYMAX T 1:9 1:00 120/32
DEKTOL (power) 1:2 1:00 120/32
DEKTOL (liquid)* 1:9 1:00 120/32
EKTONOL 1:3 1:30 120/32
D-72 (formula) 1:2 1:00 100/26
Stop Bath-,65 to 75 F (18 to 24 C)
Indicator 1:63 0:10 80/20t
EKTAFLO 1:31 0:10 80/20t
Fixer/Replenilsher (single bath)$--,65 to 75 F {I8 to 24 C)
Nonhardening fixer (for general printing and for toning):
Rapid Fixer,
Solution A (do not
use Solution B)
1:7 2:00 100/26
Hardening fixers (for general printing):#
KODAK Fixer - 2:00 100/26
POLYMAX T 1:7 2:00 100/26
Rapid Fixer
(Solution A and B)
1:7 2:00 100/26
KODAFIX Solution 1:7 2:00 100/26
Wash -50 to 86 (10 to :30 C)
- 4:00 -
 * Provides greater development latitude.
t Discard the solution when color changes to a purplish blue.
$ To increase capacity, use two fixing baths.
# Using a hardening fixer makes toning less efficient. For the same
amount of processing time, you'll see less of a toning effect.

Stop Bath
Bathe prints for at least 10 seconds at 65 to 75F ( 18 to 24C) with continuous agitation in KODAK EKTAFLO Stop Bath, KODAK Indicator Stop Bath, or 48 mL KODAK 28% Acetic Acid and water to make 1 L.
With EKTAFLO or Indicator Stop Bath, discard the solution when the color changes to purplish blue. Change Acetic Acid and water stop bath after approximately twenty 8 x 10-inch prints per litre (eighty 8 x lOs per gallon).

Fixing
Fix prints at 65 to 75F (18 to 24C) with frequent agitation. With KODAK POLYMAX T Fixer, KODAK Rapid Fixer, or KODAFIX Solution, fix for 2 minutes if you use a single bath. If you use two fixing baths, fix prints for 1 minutes in each bath, draining for 5 seconds between baths.
Note: Using a hardening fixer makes toning less efficient. For the same amount of processing time, you' 11 see less of a toning effect.

Washing
Wash for at least 4 minutes in running water at 50 to 86F (I0 to 30C), interleaving the prints carefully and frequently.
Avoid prolonged fixing or washing times to realize all advantages of this water-resistant base, and to minimize physical damage, edge penetration, and curl.

Drying
Remove excess water from the front and back of prints with a clean squeegee, soft viscose sponge, or lintless blotter. Air dry prints at room temperature or with warm air, or use a dryer intended for resin-coated papers.
Ferrotyping (glazing) prints is not recommended. You can use ferrotype dryers (glazers) at temperatures below 190F (88C) if you place the print's base side against the drum or platten surface.
NOTICE: The sensitometric curves and data in this publication represent product tested under the conditions of exposure and processing specified. They are representative of production coatings, and therefore do not apply directly to a particular box or roll of photographic material. They do not represent standards or specifications that must be met by Eastman Kodak Company. The company reserves the right to change and improve product at any time.

KODAK POLYMAX II RC Paper,F Surface
KODAK POLYMAX Filters

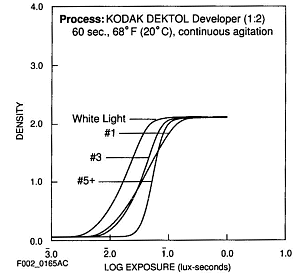

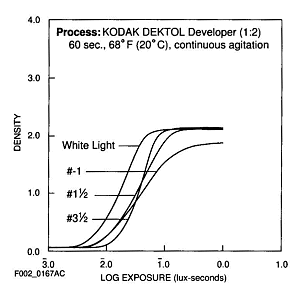

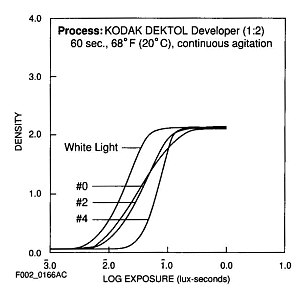

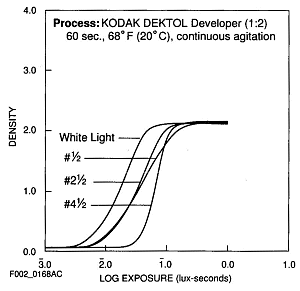

Characteristic Curves





TONING
Treatment with a toner extends the life of prints that may be exposed to oxidizing gases or subjected to adverse storage or display conditions. KODAK Toners will protect prints whether or not they produce a tone shift.

Processing Tone Shift with KODAK Toners
Full Moderate Slight None*
Tray
(KODAK
DEKTOL
Developer)
Brown
(1:19)
POLY-TONER
(1:4)
(1:24)
(1:50)
Rapid
Selenium
(1:3)
(1:9)
(1:20)
Rapid
Selenium
(1:40)
Sepia t
* Recommended for print protection. No color change.
t KODAK Sepia Toner will lighten print density during toning. To tone this paper in Sepia Toner, make your prints significantly darker than normal. Make an initial series of test prints to determine how much extra density you'll need for this paper with a given developer.
For more information on toning, see KODAK Publication G-23, Toning KODAK Black-and-White Materials. It explains the technique of toning, and describes Kodak toners and their effects on Kodak black-and-white papers and films.

RETOUCHING
Although KODAK Liquid Retouching Colors
(CAT 190 1743, Set of 9 liquid dyes) are intended primarily for color prints, you can use the Neutral (CAT 190 2378) dye to retouch black-and-white prints, or mix the colored dyes to match toned black-and-white prints.
To correct or eliminate spots or scratches, add density to the area using KODAK Liquid Retouching Color, Neutral (CAT 190 2378). If the Neutral dye color does not completely match, adjust the color by adding small amounts of either Red (CAT 190 2246) or Cyan (CAT 190 2345) Liquid Retouching Color to "warm" or "cool" the tone. Note: The Kodak materials described in this publication for use the KODAK POLYMAX II RC Paper are available from dealers who supply Kodak professional products. You can use other materials, but you may not obtain similar results.

MORE INFORMATION
Kodak has many publications to assist you with information on Kodak products, equipment, and materials. The following publications are available from Kodak through the order form in KODAK Publication No. L-1, KODAK Index to Photographic Information. To obtain a copy of L-1, send your request with $ 1 to Eastman Kodak Company, Department 412-L, Rochester, New York 14650-0532.
E-67 Finishing Prints on KODAK Water-Resistant Papers
F-2 Pathways to Black and White
G-23 Toning KODAK Black-and-White Materials K-4 How Safe Is Your Safelight?
The following book is available from photo-specialty dealers who sell Kodak products:
R-20 KODAK Black-and-White DATAGUIDE

Kodak Information Center's Faxback System
-Available 24 hours a day, 7 days a week Many technical support publications for Kodak professional products can be sent to your fax machine from the Kodak Information Center. Call: U.S. 1-800-242-2424, Ext. 33 Canada 1-800-295-5531
If you hake questions about Kodak products, call Kodak. In the U.S.A.:
1-800-242-2424, Ext. 19, Monday-Friday 8 a.m.-B p.m. (Eastern time)
In Canada: 1-800-465-6325, Monday-Friday 8:30 a.m. 5 p.m. (Eastern time)
Or contact Kodak on-line at: http:llwww.kodak.coml

KODAK POLYMAX 11 RC Paper
KODAK Publication No. G-26 Kodak, Dataguide, Dektol, Dektomatic, Ektaflo, Ektonol, Kodafix, Minor Revision 6-96 CAT 871 9346 Poly-Toner, Polycontrast, Polymax, and Royalprint are trademarks.
